Description
4. 0 inch Color Screen LCD & GUI
Intuitive UI , simplifies operation
Features
Bluetooth Support
·Bluetooth-enabled mobile key solution
·UNIS-B : App for administrators
·V-CARD : App for mobile key users
4. 0” Touchscreen LCD & GUI
·Large screen and intuitive UI for easy use
Multi-Language Support
Open Supervised Device Protocol (OSDP)
·communication protocol support that allows peripheral devices to interface with control panels or other security mgmt. systems
VoIP Supported
·IP BX Network(SIP)
Face Detection
·Image capture for higher security
Built-in Camera / W FLASH
·Image acquisition during access
·VGA Color
Easy Data Transfer (USB ON-THE-GO)
·Easy data transfer and firmware upgrade by using USB
Specification

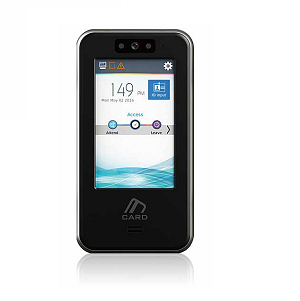

Detail Specification AC-1100
| Authentication Method | Card | |
| Dust/ Water Resistance | X | |
| Memory | Max Users | 200,000 |
| Fingerprints (Templates) |
X | |
| Logs | 1,000,000 | |
| Images | 15,000 | |
| Communication | With Server | TCP/IP |
| Other | Bluetooth/USB | |
| Wireless LAN(Wi-Fi) | Optional | |
| Wiegand OUT | O | |
| RS232 | O | |
| RS485 | OSDP | |
| Wiegand IN | O | |
| Display | LCD | 4″Color Touch |
| Backlight | O | |
| Embedded Camera | O | |
| Card | 125khz-EM | O |
| HID Prox | Optional | |
| HID iclass | X | |
| 13.56MHz Smart Card | O | |
| Keypad | Touch Screen | |
| Function keys | SOFT | |
| Door Phone | D (Volp) | |
| FP Sensor | Platen Area | X |
| Resolution | X | |
| Authentication Speed |
(1:1) | X |
| 1:N(1,000) | X | |
| Dimension | (W) X (H) X (D) mm | 80 X 153 X 18.2 |
| FRR /FAR | N/A | |
| Operating Temperature | -20 ~ 60℃ | |
Include: UPS Power Supply, Emergency Glass Breaker, Exit Switch.
